Which software is used for PEB structural analysis?

STAAD Pro software is commonly used for structural analysis and design calculations of Pre Engineered Buildings.

Which international standards are used in PEB design?

PEB designs commonly follow standards such as AISC, AISI, AWS D1.1, IS 875, and IS 1893 for steel structures, welding, wind load, and seismic calculations.

Why are seismic and wind load calculations important in steel buildings?

Seismic and wind load calculations ensure structural stability, safety, and resistance against environmental forces in steel buildings.

What is included in a PEB design package?

A PEB design package includes design information, material specifications, load assumptions, structural layouts, member sizing, and computer software analysis outputs.

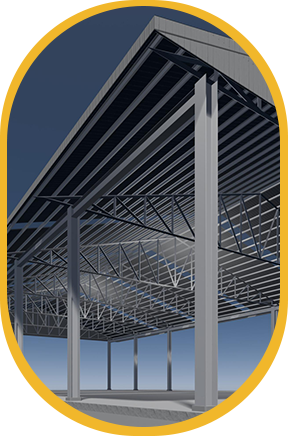

ENDEE PEB DESIGNS & CODES

Design Calculation Packages has been prepared using the international codes that stated in the next clause (Applicable Design Codes) and the latest developments in engineering practices. A competent design engineer prepared the calculations which were checked by another engineer.

Design package divided into two sections as follows:

1. Design Information : This section contains the description of the building designed, design codes and material specifications used, assumptions, loads & design sketches showing building components layouts and members sizes

2. Computer Software analysis & Design : This section includes the output of computer program STAAD Pro used in the design along with explanations for the output where possible.

APPLICABLE CODES

1. Wind Load for PEB is applied as per : as per MBMA & or IS 875.

2. AISC - American Institute of Steel Construction.

3. Cold formed components have been designed in accordance with: AISI 1986 "American Iron and Steel Institute" Cold Formed Steel Design Manual.

4. Welding has to applied in accordance with: AWS D1.1:2008 "American Welding Society".

5. Seismic load calculations in accordance with: IS 1893 (Part I): 2004 "Criteria for earthquake resistant design of structures".

6. Dead load, live load, Collateral load are to add applicable code (IS875).
